Description
1、Automatic recording, with its own storage function, and loop recording. With cloud storage function.
2、Support mobile APP remote viewing, no matter where you are, you can see everything happening at home.
3、No wiring, battery power supply or USB power supply, ultra‑long standby, low power consumption technology.
4、Active wake-up, video intercom, mobile phone can actively wake up the device remotely and actively monitor the picture you want to watch.
5、You can smoothly perform visual intercom with visitors anytime and anywhere (the APP can be set to remind you by phone or SMS). 6、PIR detection function, 170° wide‑angle, can record the sensed scene within the visible range of the machine. 7、Infrared mobile surveillance high-definition camera, infrared night vision, can also work at night without lights.
Item Type: Surveillance Camera
Material: ABS+PC
Color: As shown in the picture
Product Size: Approx. 9×5.5x5cm / 3.5×2.2×2.0in
Weight: Approx.320g/11.3oz
Model
Model
B90
Main control + WIFI module
Main control + WIFI module
For Ingenic T31ZL+CYW43438_A1
WIFI parameters
Transmit power
11b:17dBm
Receiving sensitivity
(11Mbps)-82dBm
Camera
sensor type
JX-F37
pixel
2MP
Viewing angle
Diagonal 170°
HDR
Yes
WDR
No
Resolution
High definition1928H x 1088V standard definition640H x 360V
Image recognition (distinguish between people and animals)
No
Video codec standard
H264
FPS (Transmission frames per second)
Daytime
15fpc
Night
15fps
Infrared night vision
Number of lights
6pcs 5mm infrared lamps
Judging the realization principle of day and night
Photosensitive diode
Detection distance
5M
Human detection
Realization principle
PIR
Whether the sensitivity is adjustable on the APP
High, medium and low gear
PIR sensitivity is high, the detection distance is the farthest
In the sensitivity, the detection distance is moderate
Low sensitivity, short detection distance
Detection distance
To be determined
Power consumption
How long does it last if you press the doorbell 10 times a day
10 times a day, 25 seconds each time
Standby mode current
To be determined
Working current (night vision + video)
200mA for daytime, 300mA for night vision
Sound
Number of microphones
1
Microphone specifications
-38db
Speaker specifications
1524 speaker L100 2P 1.25 terminal dual magnet 1 watt 8 ohm
Whether to bring aftersound cancellation
Yes
Power supply
low voltage AC(18V-24V)
No
Battery-powered (not included)
3.7V 2 x detachable 18650 lithium battery
USB powered
5V
Power monitoring function
Yes
Charge
DC5V
DC5V
Storage
Memory card slot
Yes
Memory card size detection card size detection
Yes
Data storage in the cloud
Support (platform fee)
Wake-up method
Key wake up
NO
PIR wake up
Support
Phone wake up
Support
Information push interval
Within 600ms
Number of devices to share
Number of devices to share
Unlimited
Number of mobile phones that can be online at the same time
Number of mobile phones that can be online at the same time
4
Anti-dismantling alarm
No
Waterproof and dustproof grade
IP65
Operating temperature
-20~+60℃
Whether the product has a protection circuit
Overcharge and over discharge, anti-battery reverse connection, etc.
Smart speaker interaction
Communication for alexa
Yes
Communicate for google
Yes
Installation Method:
Step 1. Choose a bracket to install and fix it to the wall.
Note: 1. The best installation height of the equipment is 2.5 meters. 2. The best tilt angle of the equipment is 5-20°.
Step 2. Install the battery: Use a screwdriver to loosen the fixing screw of the battery cover. Open the battery cover. Install the battery. Close the battery cover and tighten the screws to prevent it from falling off. (Not including battery)
Step 3. Install the device on the bracket and fix it.

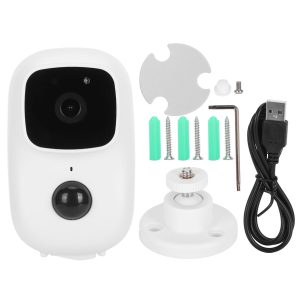

1 x Chinese and English Instruction
1 x Bag of Accessories(9pcs spare parts)
1 x WIFI Wireless Monitoring Host(Battery Not Included)
